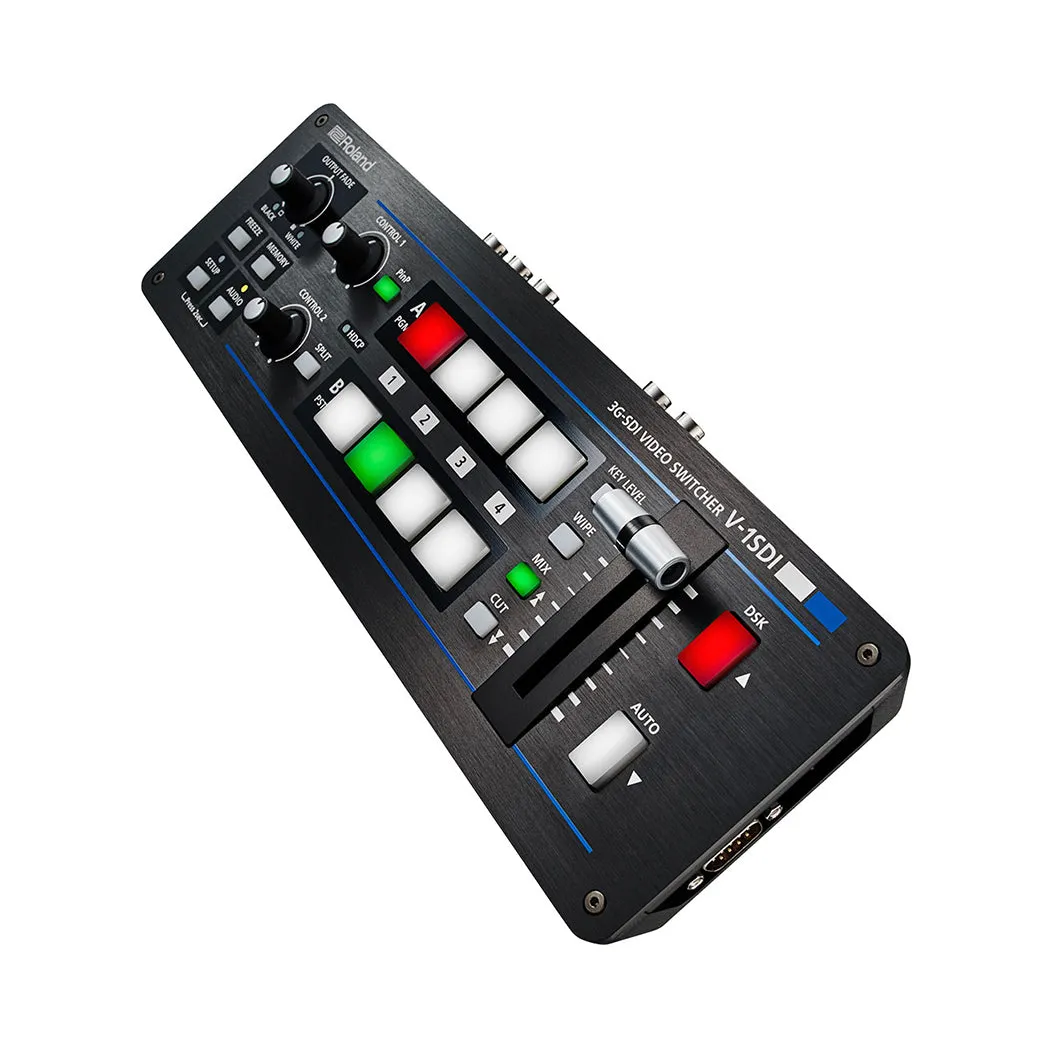

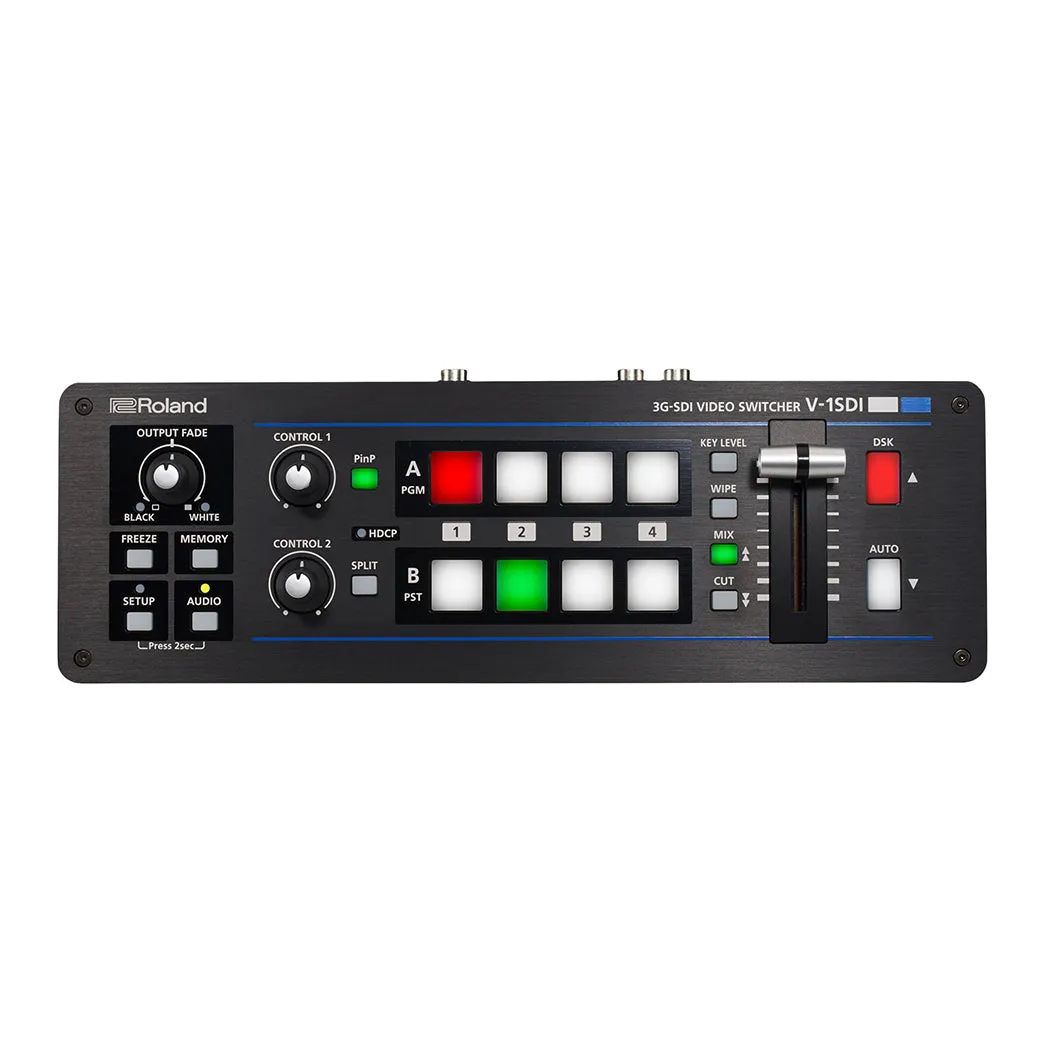

Compact, comprehensive, and ready to interface with professional SDI-equipped video gear, Roland's V-1SDI video switcher combines four channels of video mixing with all the compositing modes, transitions, audio mixing, and I/O you could ask for. Extensive and flexible I/O includes SDI, which supports professional video equipment and long cable runs, as well as HDMI. Both an integrated HDMI scaler and a 2-mode SDI output (PGM/PST) provide ample system integration flexibility. On top of that, you can add an HDMI screen for quad-source monitoring, a laptop running remote control software, and even an RS-232 controller, making the V-1SDI an ideal hub for your video rig.

If you're using SDI-equipped cameras, you could hardly ask for a better video switcher for videography, webcasting, and mobile media production than Roland's compact V-1SDI. This simple switcher is light to pack, takes seconds to set up, and includes flexible SDI outputs allowing you to send PGM signal to two sources at once, such as dedicated recorders and web-streaming interfaces. It also provides audio processing, including a microphone input with EQ, compression, delay, and other processing, making it easy to record voice-overs and interviews in real time.

Equipped with SDI I/O, which is capable of far greater cable runs than HDMI, the Roland V-1SDI is an elegant video switcher for multimedia auditoriums and similar venues. At the same time, two HDMI inputs allow you to connect computers and video players, and since one of the HDMI inputs includes a scaler, you can even use standard-definition sources. What's more, the V-1SDI comes equipped with an RS-232 serial port, allowing you to connect it to more elaborate video system controllers as your needs grow.

• Type:Video Switcher
• Channels:4
• Video Inputs:3 x SDI, 2 x HDMI
• Video Outputs:2 x SDI, 1 x HDMI
• Audio Inputs:2 x RCA, 1 x 1/8" (mic)
• Audio Outputs:2 x RCA, 1 x 1/8" (headphones)
• Other I/O:RS-232C, USB Type B
• Manufacturer Part Number:V-1SDI
