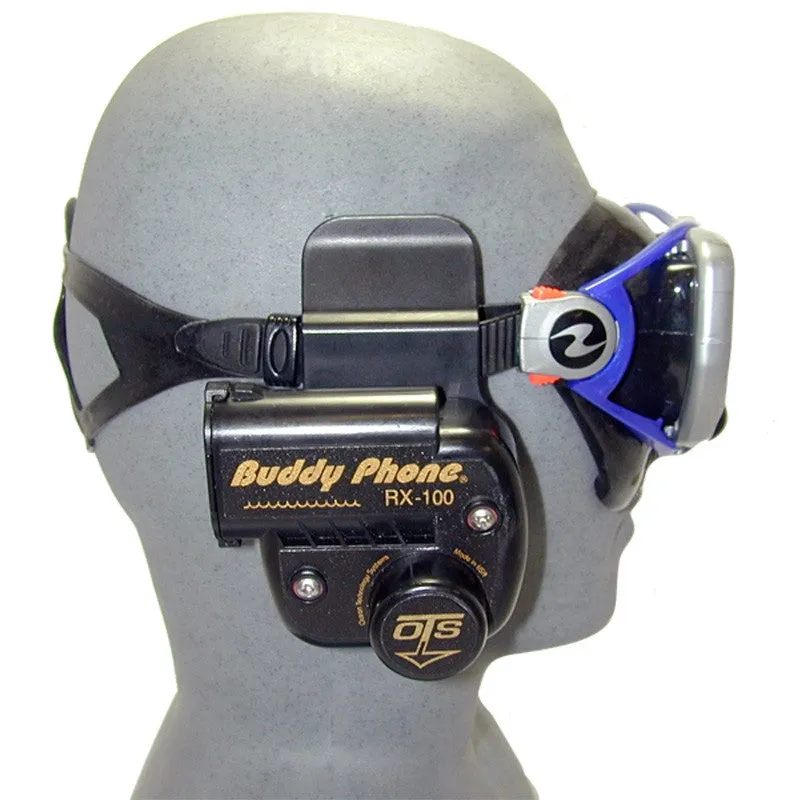

The RX-100 Buddy Phone® Receive Only unit is designed as an acoustic underwater listening device to be used with all Buddy Phone® or Aquacom® transceivers within range and on the same frequency. The diver simply attaches the RX-100 to his own face mask and is ready to go. When the diver enters the water, the RX-100 powers up and cycles to the receive mode—ready to receive a message.

The RX-100 is the most powerful tool an Instructor or Tour Guide can use. It allows verbal communications helping the new diver feel more secure.

The RX-100 is compatible with all OTS through water communications systems (surface and diver) and receives on Channel 1.

Features

• Channel A = 33K Upper
• Nominal Range: 50 to 500 meters depending on sea conditions and noise levels.
• Refer. Frequency: 32.768 kHz upper single sideband
• Audio Bandwidth: 300 Hz to 3,000 Hz
• Auto. Gain Control: Greater than 80 dB
• Earphone: Ceramic with dynamic depth compensation
• Microphone:n/a
• Transducer: Ceramic cylinder
• Acoustic Power: 0.5W
• Battery Type: Alkaline 9V "transistor" type
• Operating Depth: 130 fsw
• Weight in Air: 8.1 oz. (229.64 grams)
