Product Details
＋
A&E SPECIFICATIONS
- The 19 in. EIA rackmount panel shall be Lowell Model ACR- 1507-GNLT, which shall feature two XLR connectors in front controlled by a dimmer switch and one XLR connector in rear controlled by an on/off switch. The unit shall include two gooseneck lights with XLR connectors. It shall also feature a total of seven 15A outlets—one in front and six in the rear. The 19 in. x 9 in. x 1.75 in. chassis shall have a smooth black powder epoxy finish and include a 9-ft. detachable cord with NEMA 5-15P plug.

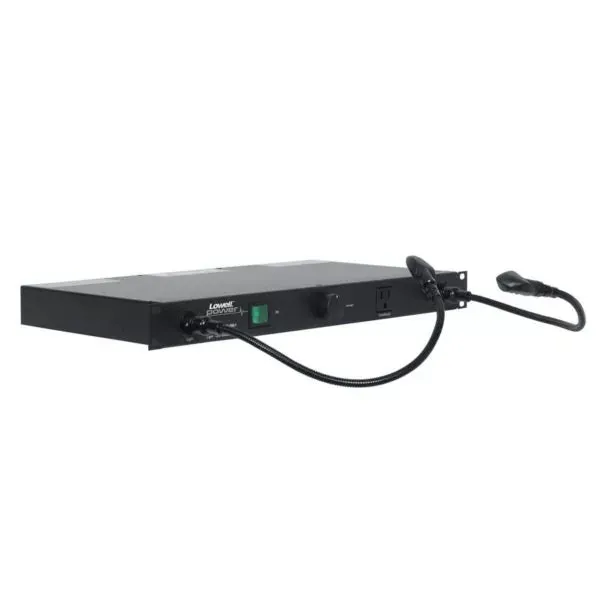

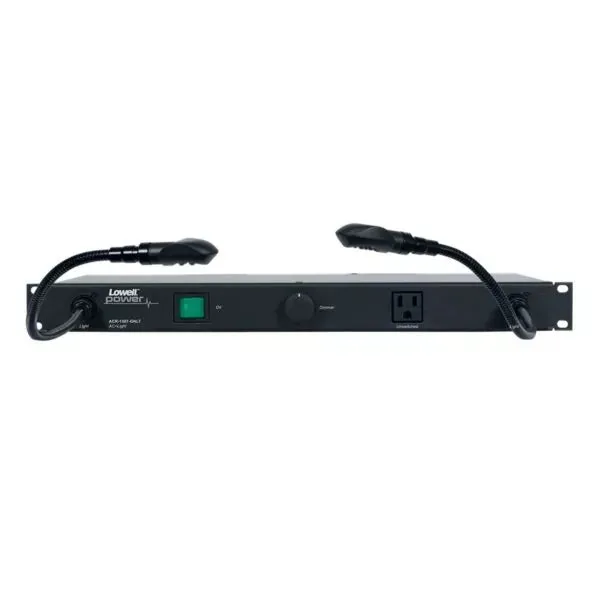

Model ACR-1507-GNLT power distribution panel with gooseneck lights features 15A NEMA outlets (seven total). The power switch is lighted, which makes it easy to see at-a-glance when the switched outlets are powered.
SPECIFICATIONS
- Power Rating: 120 VAC, 60 Hz, 15A
- Outlets: 7 (15A) outlets (1 unswitched in front, 4 unswitched in rear, 2 switched in rear)
- Termination: 9 ft. detachable cord with NEMA 5-15P plug
- Chassis: 19 in. x 9 in. x 1.75 in. (1U)
- Switch (on/off): Rocker

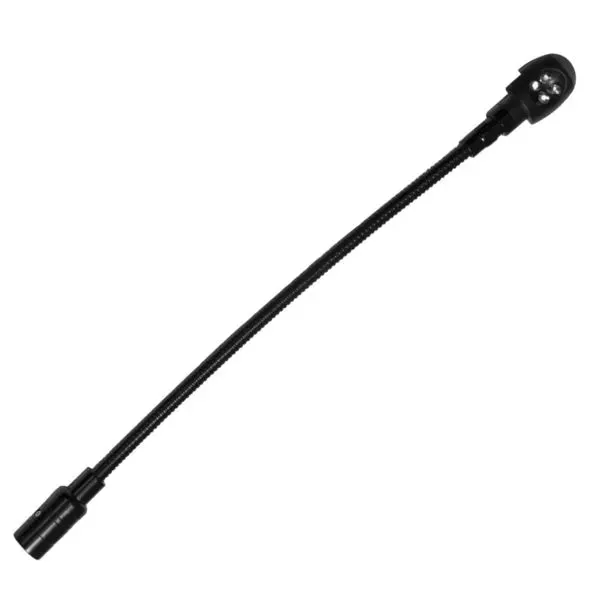

- Lighting: Two gooseneck lights produce soft white light. Two front XLR connectors controlled by dimmer switch. Rear XLR connector controlled by on/off switch.
- Energy efficient LEDs
COMPLIANCE & CERTIFICATION
- ETL Listed, U.S./Canada
- Made in U.S.A. with global components
TECHNICAL DOWNLOADS
- Spec Sheet:
OPTIONS (order separately)
- GNLT-18 Additional gooseneck light for rear XLR connector
- ACSP Series: Surge suppressors
